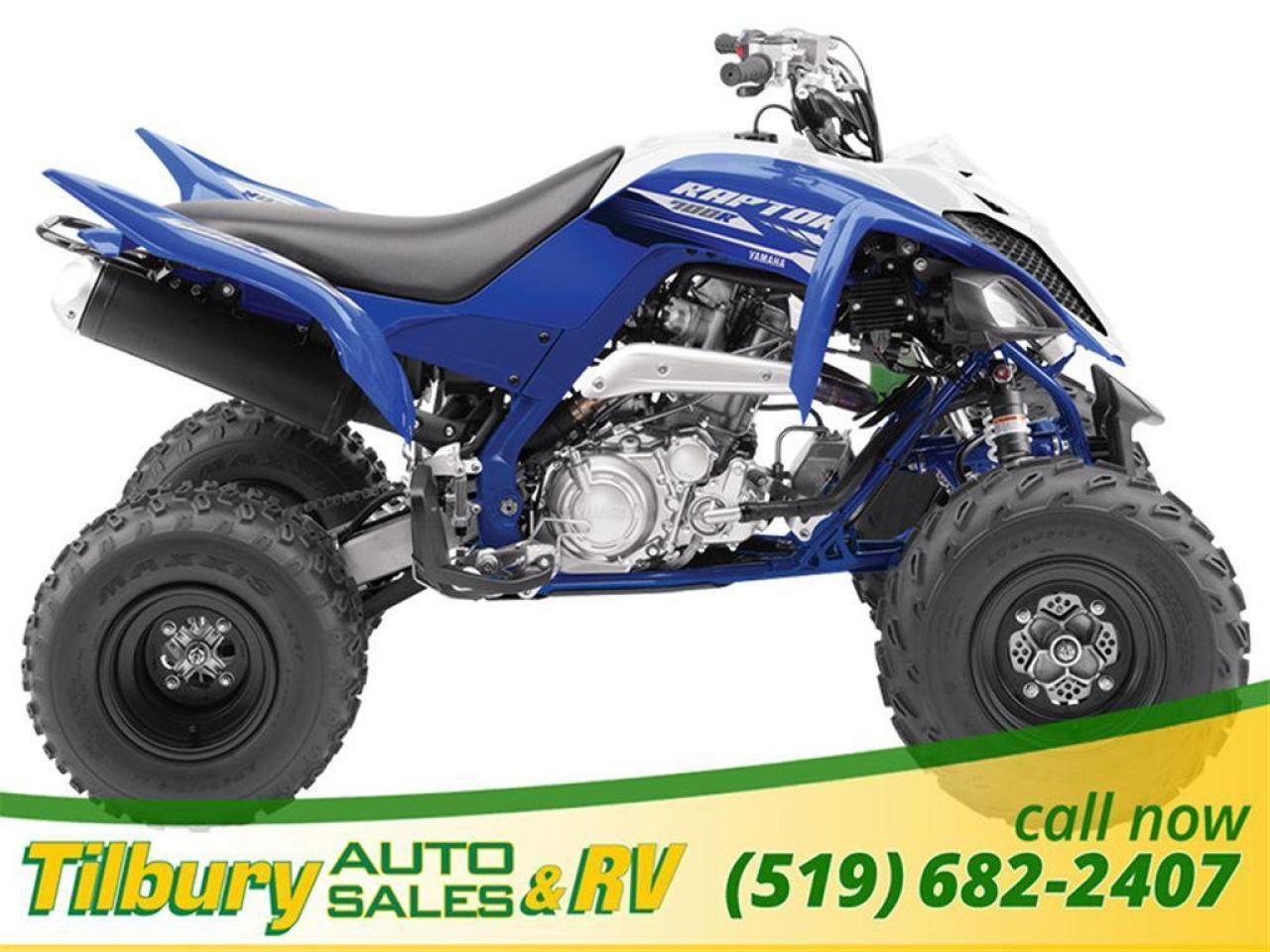

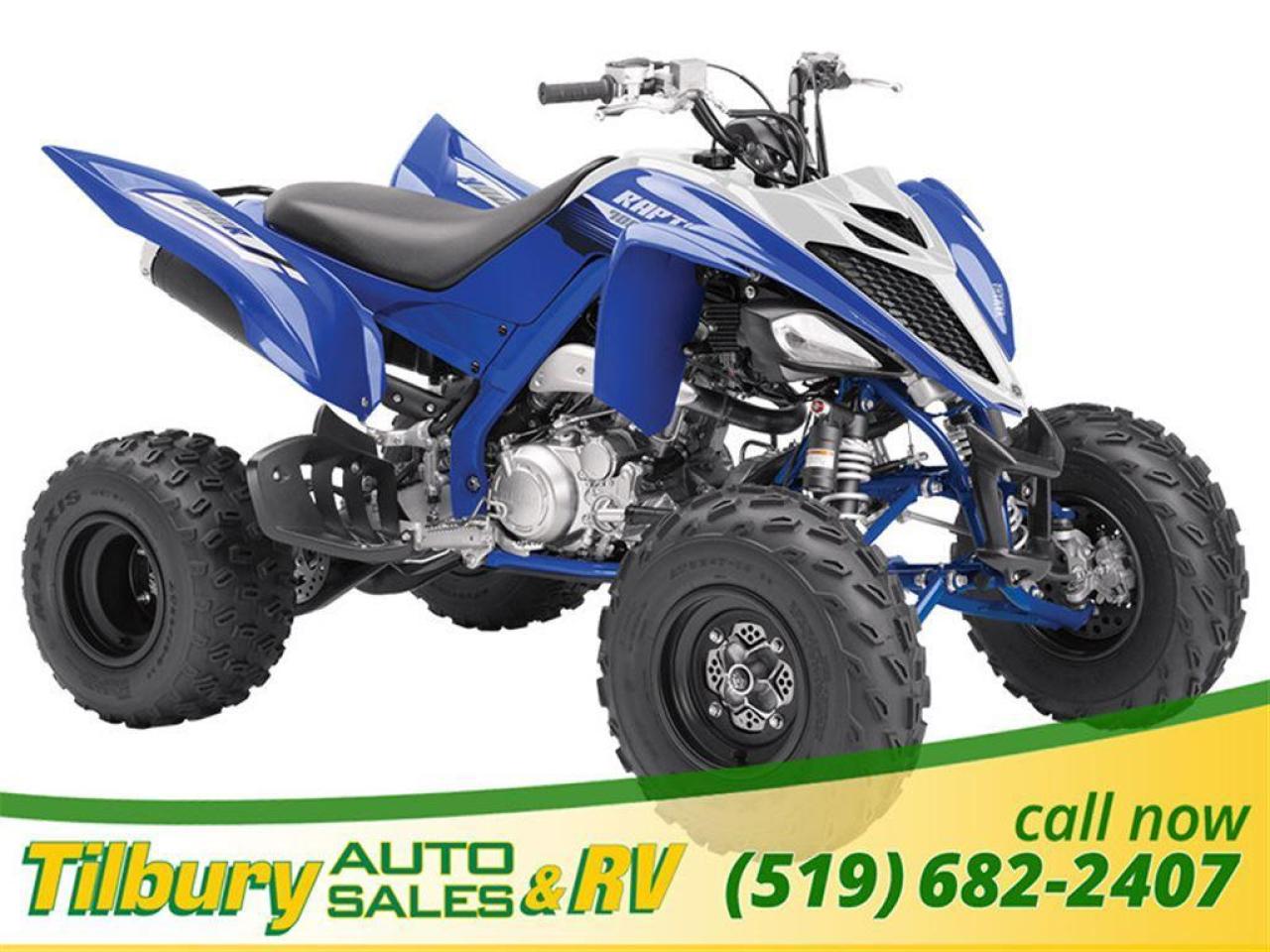

Conquer Dirt What makes the Raptor 700R the undisputed king of big-bore ATVs? It starts with a monstrous fuel-injected engine, aggressive styling and advanced hybrid steel aluminum frame. Add massive suspension travel, along with electric start and reverse, and you have unbeatable big-bore performance. Key differences between Raptor 700 & Raptor 700R Fully adjustable front & rear suspension with premium KYB piggyback shocks Adjustable front brake lever ENGINE 686cc, liquid-cooled, SOHC, 4-valve, fuel injected single produces serious torque & horsepower. excellent reputation for both durability & reliability. Electric starting. includes auto decompression system for fast, easy starts can be re-started in any gear SOHC, 4-valve cylinder head design. 2-intake (38 mm) & 2-exhaust (32 mm) valves provide maximum breathing efficiency screw & tappet valve actuation for easier maintenance Ceramic composite plated cylinder uses liner less bores. ceramic coating sprayed directly on the aluminum block, eliminating the liner & reducing weight excellent heat dissipation for consistent power delivery ceramic coating enhances the thin film of oil between the cylinder & piston, reducing friction & increasing power Short skirt forged aluminum piston. lightweight design means faster throttle response reduced reciprocating mass means less mechanical vibration Dual gear driven balancer shafts. reduces engine vibration for improved rider comfort & stamina 44 mm Mikuni throttle body fuel injection system with TPS & ISC. TPS (Throttle Position Sensor) is used to more precisely calculate the fuel injection quantity for optimum power & excellent throttle response at all rpms ISC (Idle Speed Control) helps ensure a steady idle even during warm up fuel injection benefits include; choke-free starting, steady idle during warm, excellent fuel economy & reduced emissions No tools required air box with washable dual stage foam air filter. washable foam filter features tool-free access for fast servicing dual stage design provides maximum filtering no tools required air box drain Compact 5-speed transmission with reverse & heavy duty manual clutch. optimized gear ratios match engine output for maximum performance heavy duty clutch basket & plates are designed to handle the Raptor's massive torque Dry sump lubrication system. design helps reduce oil-starvation at high g-loads no deep oil pan means engine is lower in the chassis for optimum handling & reduced centre of gravity replaceable element style oil filter High capacity cooling system with electric cooling fan. maintains consistent engine temperatures for optimum performance rad is positioned higher in the frame for additional protection Maintenance-free transistor controlled ignition (TCI). produces a strong spark for fast starts precise ignition timing / mapping for optimum engine performance at all rpms marine grade electrical connectors Performance tuned exhaust system with cleanable spark arrestor. tuned system for optimum power delivery at all rpms spark arrestor prevents stray sparks from exiting the exhaust Heavy duty O ring chain final drive. easy to adjust heavy duty O-ring chain offers excellent strength & durability Air Injection System (AIS) injects fresh air into exhaust port to fully burn any unburnt fuel, reducing exhaust emissions. chassis Lightweight, combination cast aluminum & steel frame with tuned rigidity balance. unit width is 1,240 mm or 48.8 wide, combining with a low seat height of 810 mm (31.9) for flat, stable handling compact design provides nimble, responsive handling engine is mounted low in the frame to reduce the centre of gravity & centralize mass for exceptional handling rigidity balance maximizes handling & suspension performance. Frame is optimized to provide a balance of strength, rigidity & tuned flex. Detachable Controlled Fill (CF) aluminum rear subframe. reduces weight allows easier rear shock access & reduces costs in the event of damage Rugged composite under engine skid frame protection. lightweight design reduces weight skid plate allows unit to slide more easily over obstacles Lightweight cast aluminum swingarm. reduces weight excellent rear wheel traction & control Fully adjustable, independent double wishbone front suspension with premium KYB piggyback shocks. fully adjustable, long stroke KYB high pressure nitrogen charged piggyback shocks with dual rate springs & friction reducing Kashima coating front shock adjustments include; threaded spring preload, high speed compression damping, low speed compression damping & rebound damping 230 mm (9.1) of front wheel travel grease fittings on selected components allows tailoring of suspension to suit rider weight, riding style & track conditions Fully adjustable, single shock, link-type rear suspension with premium KYB piggyback shock. fully adjustable, long stroke KYB high pressure nitrogen charged piggyback shocks with dual rate springs rear shock adjustments include; threaded spring preload, high speed compression damping, low speed compression damping & rebound damping 256 mm (10.1) of rear wheel travel grease fittings on selected components Dual 161 mm front disc brakes squeezed by twin piston calipers. pads feature wear indicator grooves for visual pad wear inspection excellent braking power, feeling & control 200 mm wave-style rear disc squeezed by twin piston caliper. wave design reduces weight & improves cooling (more surface area for better cooling) pads feature wear indicator grooves for visual pad wear inspection Handlebar mounted parking brake. Rugged, lightweight aluminum rims fitted with high performance MAXXIS tires. rims feature rolled edges for additional strength & durability tire design enhances steering precision, control & traction optimized rim offsets enhance handling & stability 11 litre fuel tank. 2.9 litre reserve capacity (low fuel light illuminates) Lightweight tapered aluminum handle bar. excellent strength & durability Adjustable handlebar holders offer a total of 4 different handlebar positions. fore & aft adjustment with 30 mm range suits wide variety of rider sizes & preferences Compact LED warning indicators. LED warning indicators; neutral & reverse gear position, low fuel, coolant temp, & engine trouble Aggressive, race oriented bodywork & special flat seat design. race designed bodywork provides freedom of movement & good forward visibility bodywork panels can be quickly removed for easier servicing & washing Dual cat eye headlights & taillight with brake light. dual cat eye 30 / 30 watt Krypton bulb headlights single brilliant LED taillight with brake light Wide 45mm (1.8) foot pegs with heel guards provide excellent grip. Low maintenance, sealed battery (battery should be charged during extended storage). sealed design means no leaks & never having to add distilled water While every reasonable effort is made to ensure the accuracy of this data, we are not responsible for any errors or omissions contained on these pages. Please verify any information in question with a dealership sales representative. Serving, Windsor, Essex, Tilbury, Chatham, Blenheim, Rodney, St. Mary's, St. Thomas, Leamington, Harrow, Amherstburg, Kingsville, Wheatley, Belle River, Lakeshore, Wallaceburg, Sarnia,London, Lambton, Lambton County, Lambeth, Essex County, Middlesex, Middlesex County, Rodney, Dresden, Thamesville, Lasalle, Watford, Ailsa Craig, Glencoe, Alvinston, Parkhill, Strathroy, Mt.Brydges, West Lorne, Dutton, Aylmer * Prices in Ontario, include OMVIC/AMVIC fee (where applicable), dealer administration and other retailer charges and exclude taxes, license, insurance, plus HST*
